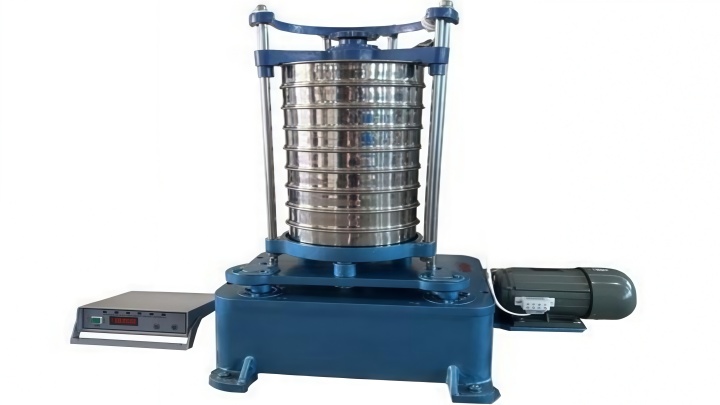

Heavy Duty Vibratory Sieve Shaker for Powder | 25 kg Capacity
The Heavy Duty Vibratory Sieve Shaker for Powder is designed for high‑capacity powder screening, particle size classification, and material separation applications requiring stable vibration and larger sample handling capability.
With a maximum sample capacity of 25 kg, this heavy‑duty sieve shaker is suitable for powders, granules, and bulk materials that require efficient particle size separation through multi‑layer sieve analysis.
The equipment can be configured according to sample quantity, sieve diameter, particle size range, and required screening results.
Technical Specifications
The configuration of a Heavy Duty Vibratory Sieve Shaker for Powder depends on material characteristics and screening requirements.
| Parameter | Specification |
|---|---|
| Equipment Type | Heavy Duty Vibratory Sieve Shaker |
| Application | Powder screening and particle size classification |
| Maximum Sample Capacity | Up to 25 kg |
| Sieve Diameter | 200–450 mm |
| Number of Sieve Layers | 1–6 layers |
| Sieving Motion | Three‑dimensional vibration |
| Screening Method | Dry screening |
| Particle Size Range | According to selected sieve mesh |
| Contact Material | Stainless steel available |
Specifications may vary according to the selected model and application requirements.

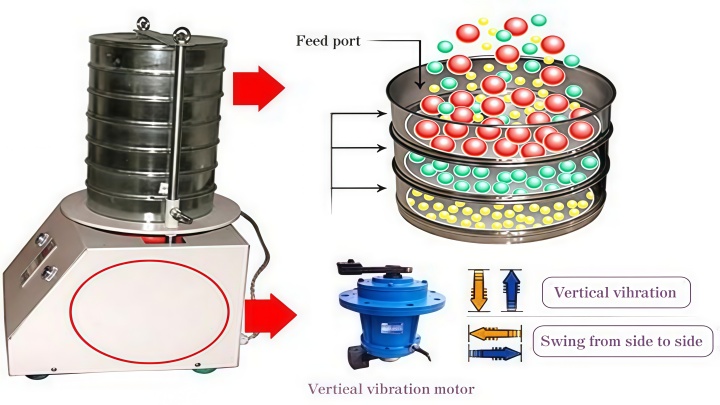

How Does a Heavy Duty Vibratory Sieve Shaker Work?
The Heavy Duty Vibratory Sieve Shaker for Powder uses controlled three‑dimensional vibration to move materials across the sieve surface.
During operation, particles are separated according to different mesh openings. Multiple sieve layers allow several particle‑size fractions to be collected during one screening process.
Screening performance mainly depends on:
Material characteristics
Sieve mesh opening
Sample loading quantity
Screening time and vibration conditions
Key Features
High Sample Capacity
The heavy‑duty configuration is designed for larger batch screening requirements. A capacity of up to 25 kg allows more representative samples to be processed in one operation.
Three‑Dimensional Vibration
The three‑dimensional movement improves material distribution across the sieve surface and supports efficient particle separation.
Multi‑Layer and Flexible Sieve Configuration
Different sieve layers and mesh openings can be selected according to the required particle‑size fractions, allowing multiple separation results in one screening cycle.
Stable Heavy‑Duty Structure
The reinforced structure supports larger sieve stacks and heavier samples while maintaining stable vibration performance.

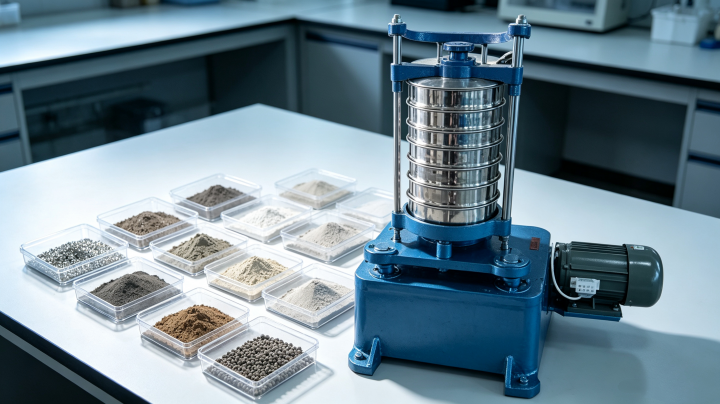

Applications
The Heavy Duty Vibratory Sieve Shaker for Powder is suitable for particle classification, quality inspection, and material analysis in different industries.
| Material | Typical Application |
|---|---|
| Metal Powder | Particle size classification and powder inspection |
| Chemical Powder | Raw material screening and fraction separation |
| Pharmaceutical Powder | Particle size control |
| Food Powder | Fineness classification |
| Mineral Powder | Particle grading and analysis |
| Granular Materials | Size separation |
The final screening performance depends on material flowability, moisture content, particle shape, and sieve selection.
How to Choose the Right Heavy Duty Vibratory Sieve Shaker?
Selecting the correct configuration requires matching the equipment with the actual screening requirement.
Sample Capacity
Choose the capacity according to the batch size. The 25 kg configuration is suitable for applications requiring larger sample screening.
Sieve Diameter
A larger sieve diameter provides a larger screening area and is suitable for higher material loading.
Particle Size Range
Select suitable sieve mesh openings according to the required particle‑size distribution.
Number of Fractions
More sieve layers may be required when several particle‑size ranges need to be separated in one operation.
Powder Characteristics
For powders with high moisture, strong cohesion, or static electricity, additional screening solutions may be required.
Heavy Duty vs Standard Sieve Shaker
| Comparison | Heavy Duty Configuration | Standard Configuration |
|---|---|---|
| Sample Capacity | Up to 25 kg | Smaller sample quantities |
| Sieve Size | Larger diameter options | Standard laboratory sizes |
| Structure | Reinforced design | Compact design |
| Main Purpose | High‑load screening | Routine particle analysis |
| Application | Large samples and production inspection | Laboratory testing |
A heavy‑duty sieve shaker is more suitable when sample quantity, sieve size, or screening requirements exceed the range of standard equipment.
Fine Powder Screening Considerations
Fine powders may cause mesh blocking, agglomeration, or uneven material distribution during screening.
To improve screening performance:
Select suitable mesh openings
Control feeding quantity and powder moisture
Use appropriate mesh cleaning methods when necessary
Frequently Asked Questions
What is a Heavy Duty Vibratory Sieve Shaker for Powder used for?
It is used for high‑capacity powder screening, particle size classification, and separation of different particle fractions.
What is the maximum sample capacity?
The heavy‑duty configuration can handle sample quantities up to 25 kg depending on material properties and machine configuration.
How many sieve layers can be installed?
The number of sieve layers depends on sieve height, sample quantity, and required particle‑size fractions.
What information is required for quotation?
Please provide:
Material type
Sample quantity per batch
Required particle size range
Sieve diameter requirement
Number of fractions required
Request a Powder Screening Solution
Choosing the right heavy‑duty sieve shaker requires matching the equipment configuration with the actual screening requirement.
Provide your material information and screening target, and Dahan can recommend a suitable configuration according to capacity, sieve size, and particle separation requirements.
