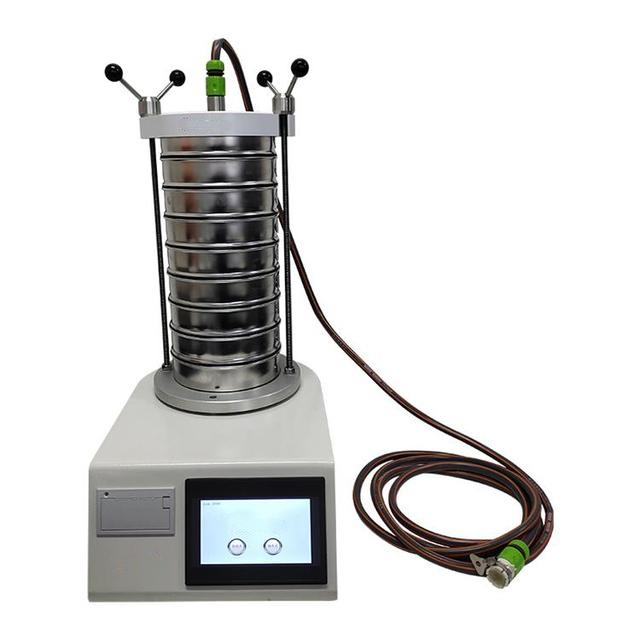

Product Overview
A wet sieving sieve shaker is a self-contained particle sizing system that uses water to wash fine particles through sieve stacks, delivering accurate particle size distribution for materials from 20 μm to 40 mm. The wet sieving sieve shaker is designed for laboratories and quality control facilities that need reliable results for challenging materials, especially those under 45 μm that agglomerate during dry sieving.
The wet sieving sieve shaker is manufactured in an ISO 9001:2015 certified facility with CE marking and full traceability. It features rotary spray distribution, water recycling, vacuum assisted filtration, and total vibration control. Wet sieving is critical for coal, minerals, marine sediments, soils, slurries, pharmaceuticals, and other non soluble materials where dry sieving fails.
Why Choose Our Wet Sieving Sieve Shaker?
Proven experience – Over 15 years of specialized manufacturing, with proprietary clamping mechanisms that ensure stack stability under high amplitude operation.
Certified quality – ISO 9001:2015 and CE certified; all certificates available on request.
Durable construction – 304 stainless steel cabinet, corrosion resistant; maintenance free electromagnetic drive.
Global recognition – Used in leading labs across Germany, Japan, the USA, the UK, France, Australia, and 35+ other countries.
Warranty & support – 3 year mechanical warranty, 24/7 technical support, and rapid spare parts delivery.
Full customization – Tailored voltage, sieve sizes, and application specific modifications.
How Does the Wet Sieving Sieve Shaker Work?
Direct answer: The wet sieving sieve shaker uses electromagnetic vibration to oscillate a sieve stack while spray nozzles wash water through the sample, with vacuum assistance for fine particle recovery.
Step by step process:

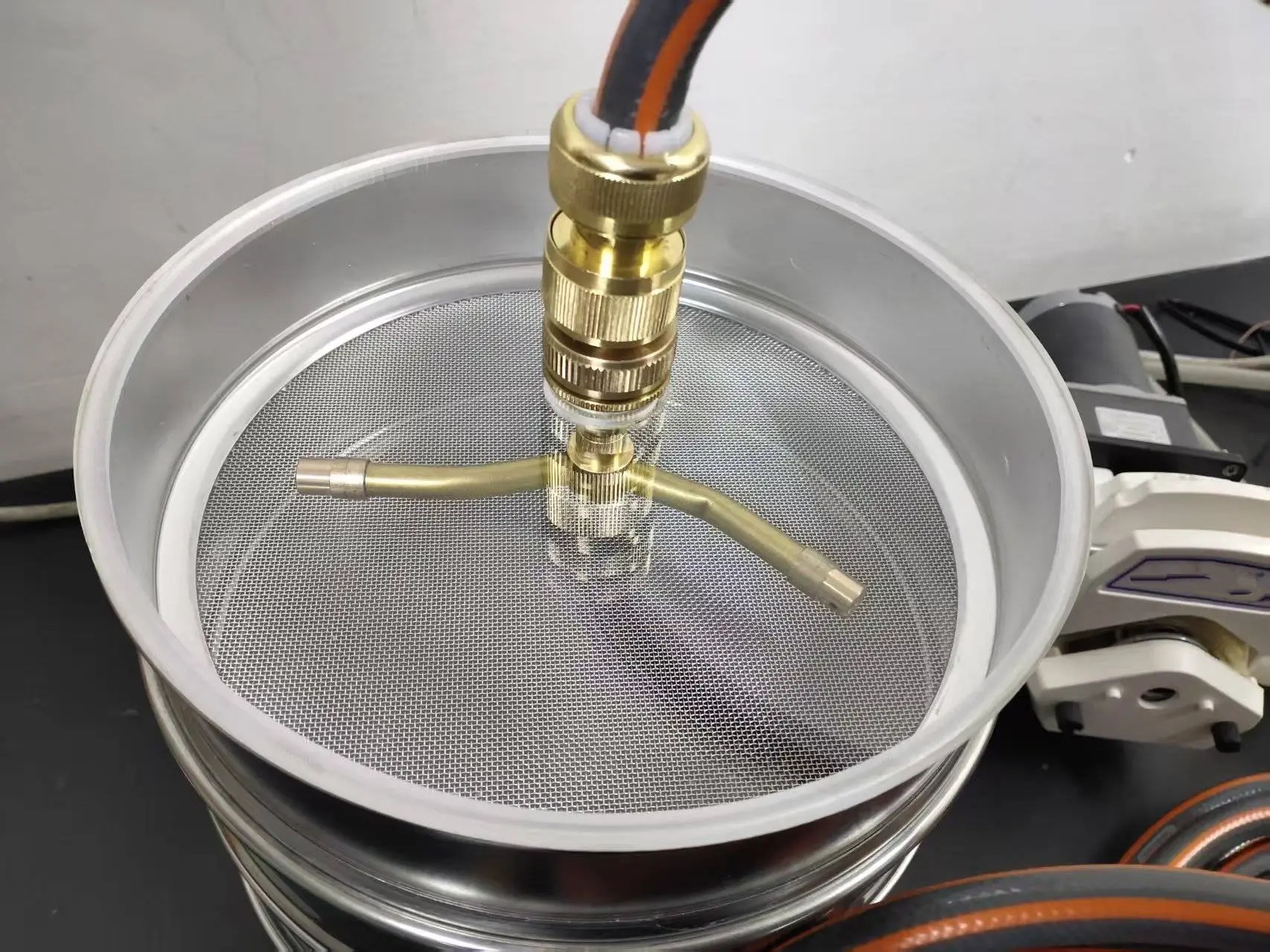

Rotary spray – A rotating spray bar evenly wets the sample, preventing agglomeration.

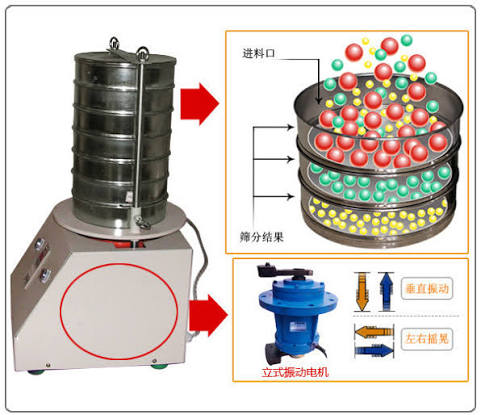

Electromagnetic 3D vibration – Adjustable amplitude (0–100% in 10 steps) reorients particles for maximum separation; maintenance free drive.
Upward spray – A lower spray stream lifts near size particles, enhancing passage.
Vacuum filtration – Filter paper below the stack captures fines down to 20 μm; suction accelerates wash water.
Real time viewing – Transparent acrylic cylinder allows visual monitoring of spray and sample.
Water recycling – 7 gallon (26.5L) tank with pump, pressure adjustable to ~35 psi (2.4 bar); can also run on direct water supply.
Control panel – Digital amplitude control, pressure gauge, vacuum indicator, timer (00:10–99:50 min with pause), and hand spray nozzle for cleaning. Locking casters ensure stability.
Wet vs. dry sieving note: Choose wet sieving for fine samples (<45 μm) that tend to agglomerate or are received as suspensions. Choose dry sieving for free flowing coarse materials. The wet sieving sieve shaker supports both modes, with switchover in under five minutes.
Technical Specifications
|
Parameter |
Specification |
|
Measuring range |
20 μm – 40 mm |
|
Drive / motion |
Electromagnetic 3D |
|
Max batch |
6 kg |
|
Max sieves |
6 full height / 12 half height |
|
Max stack mass |
10 kg |
|
Amplitude |
0–2 mm, digital 10 step |
|
Timer |
00:10–99:50 min |
|
Sieve diameters |
100/150/200/250/300/315 mm; 3"/8"/12" |
|
Max stack height |
450 mm |
|
Clamping |
Quick release |
|
Water tank |
7 gal (26.5L) |
|
Water pressure |
Up to ~35 psi (2.4 bar) |
|
Power |
115V/60Hz or 230V/50Hz, 1 phase |
|
Weight |
~45 kg |
|
Noise |
<75 dB(A) |
|
Standards |
CE |
Specifications vary by configuration; contact for exact details.
Key Features
Dry, wet, or dry to wet sieving on one unit
Rotary spray nozzle for uniform wetting
Built in water recycling with 7 gal tank
Vacuum assist for fines recovery down to 20 μm
Digital amplitude control (0–100%)
Maintenance free electromagnetic drive – no belts, no lubrication, ~40% less power consumption than mechanical alternatives
Ergonomic control panel with timer/pause
304 stainless steel cabinet, not painted steel
Transparent cylinder for observation
Quick release clamping, locking casters
Energy efficient design
Applications
Typical materials: cement clinker, coal, coke, ores, minerals, sand, gravel, soils, sediments, seeds, grains, flour, fertilizers, chemicals, pigments, pharmaceuticals, coffee, spices, food powders, metal powders, plastics, ceramics.
Key industries: Coal & mining, marine sediment research, soil & agriculture, slurry pipelines, pharmaceuticals, food processing, environmental testing, construction materials.
Available Models
|
Model |
Sieve Diameter |
Max Sieves (full/half) |
Voltage |
Frequency |
|
WV 1 |
12" (300 mm) |
8 / 16 |
115V |
60Hz |
|
WV 1F |
12" (300 mm) |
8 / 16 |
230V |
50Hz |
|
WV 2 |
8" (200 mm) |
5 / 8 |
115V |
60Hz |
|
WV 2F |
8" (200 mm) |
5 / 8 |
230V |
50Hz |
Custom diameters, voltages, and clamping systems available on request.
Accessories & Related Products
Wet sieving accessories: Spray nozzle lid, outlet pans, venting rings, sieving aids (chains, cubes, brushes), replacement filter papers, nozzles, gaskets, water tank/pump, hoses.
Related equipment: Standard test sieves (ASTM/ISO), ultrasonic shaker, mechanical shaker, air jet sieve, sieve cleaners, calibration services, storage cabinets, and spare parts.
Contact for a full accessories catalog.
Frequently Asked Questions
Q: : What is the minimum particle size that can be analyzed?
A: The measuring range is from 20 μm up to 40 mm.
Q: Can this sieve shaker be used for dry sieving as well?
A: Yes. The unit supports dry, wet, and dry-to-wet sieving modes.
Q: What types of samples are suitable for wet sieving?
A: Wet sieving is ideal for fine materials (<45 μm) that tend to agglomerate, carry a static charge, or are received as a suspension.
Q: What is the difference between wet sieving and dry sieving?
A: Wet sieving uses water to wash particles through the sieve stack, making it ideal for fine or cohesive materials. Dry sieving is used for free-flowing materials.
Q: How does the spray nozzle prevent particle agglomeration?
A: The rotating spray bar evenly distributes water, gently washing particles and breaking up clumps.
Q: How much does a wet sieving sieve shaker cost?
A: Pricing varies by model and configuration. Contact us for a factory-direct quote.
Q: Are test sieves included with the shaker?
A: Test sieves are not included and must be purchased separately
Get a Quote
Improve your particle analysis accuracy with the wet sieving sieve shaker. Our engineers will help you select the right model.
