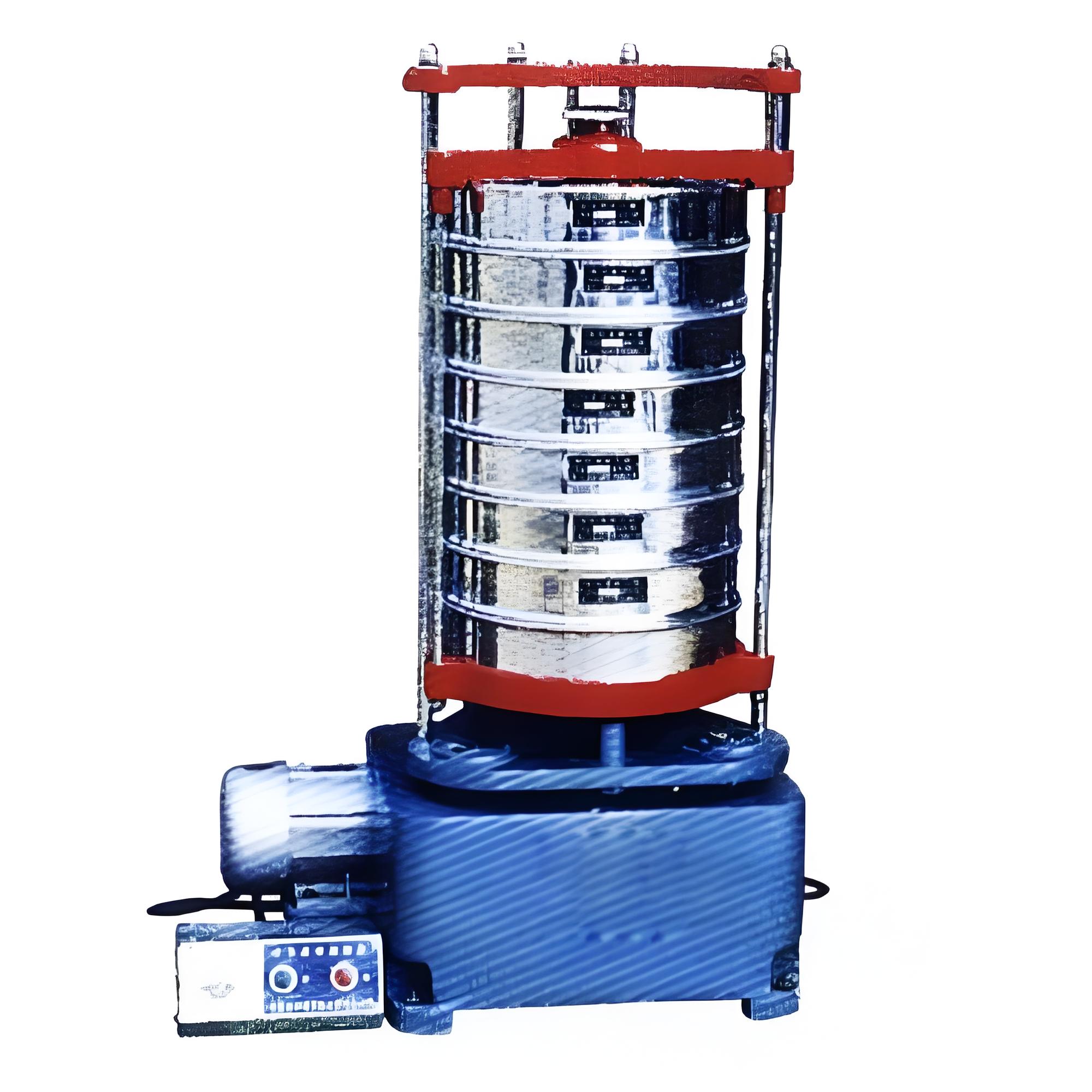

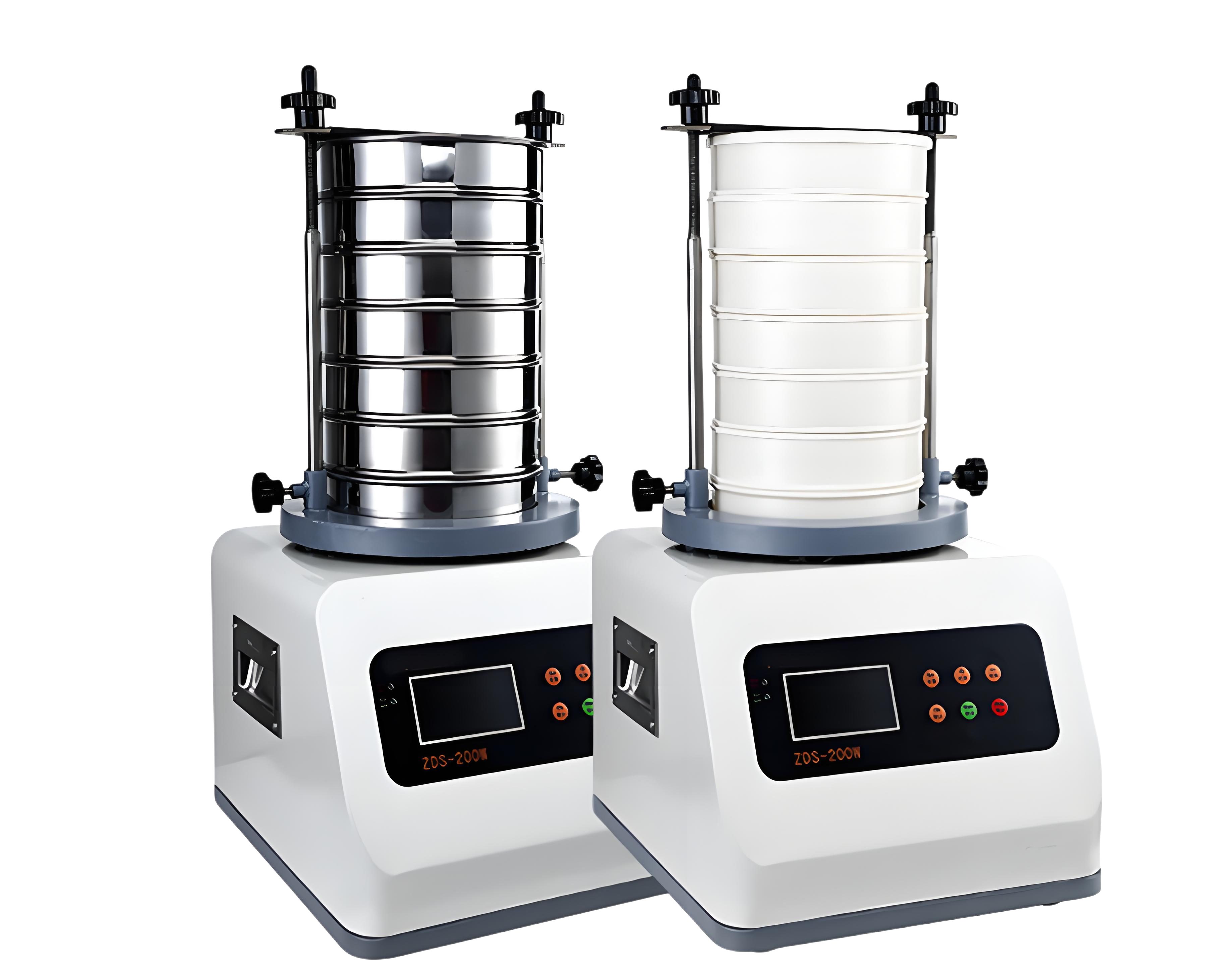

What Is a Multi-deck Laboratory Vibratory Sieve Shaker？

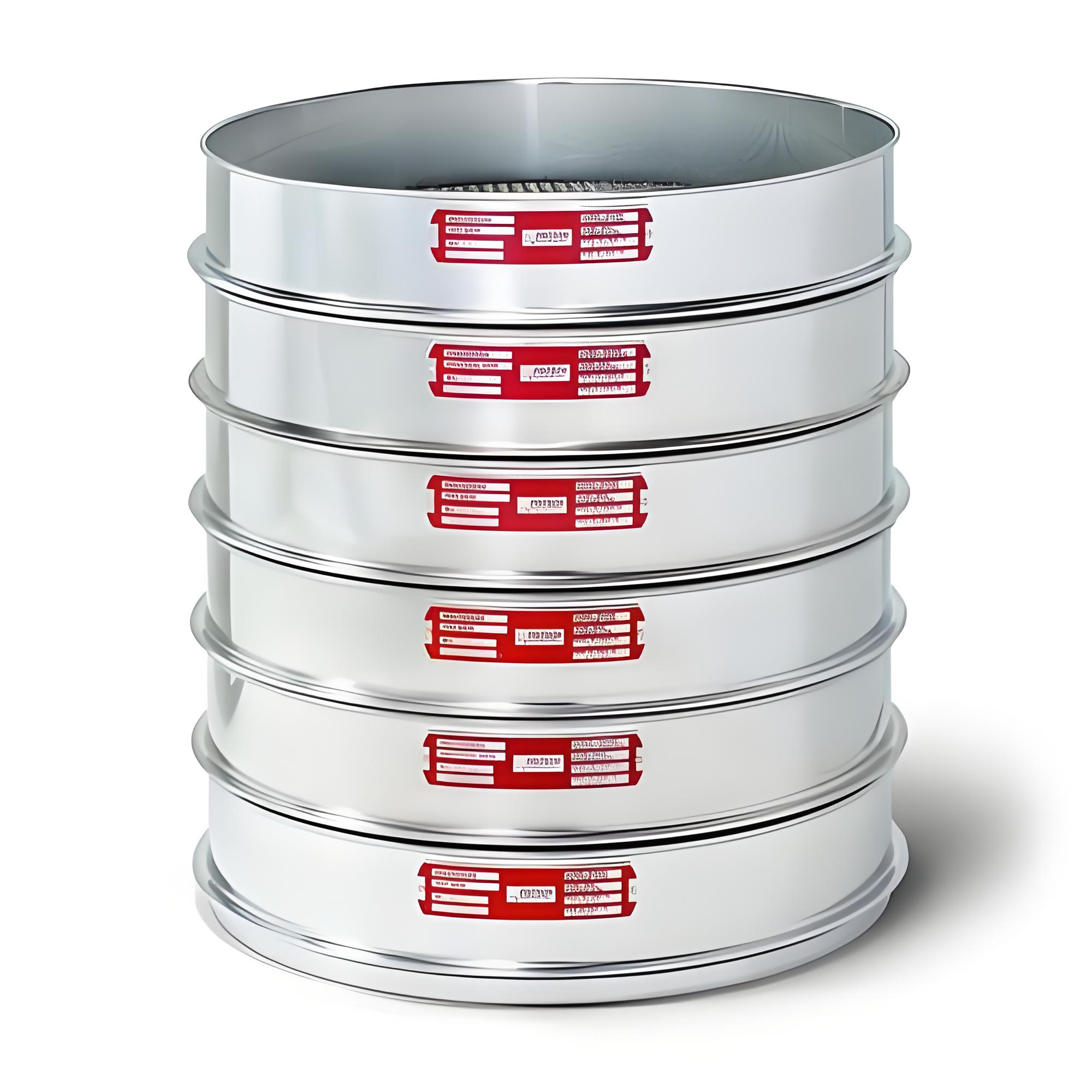

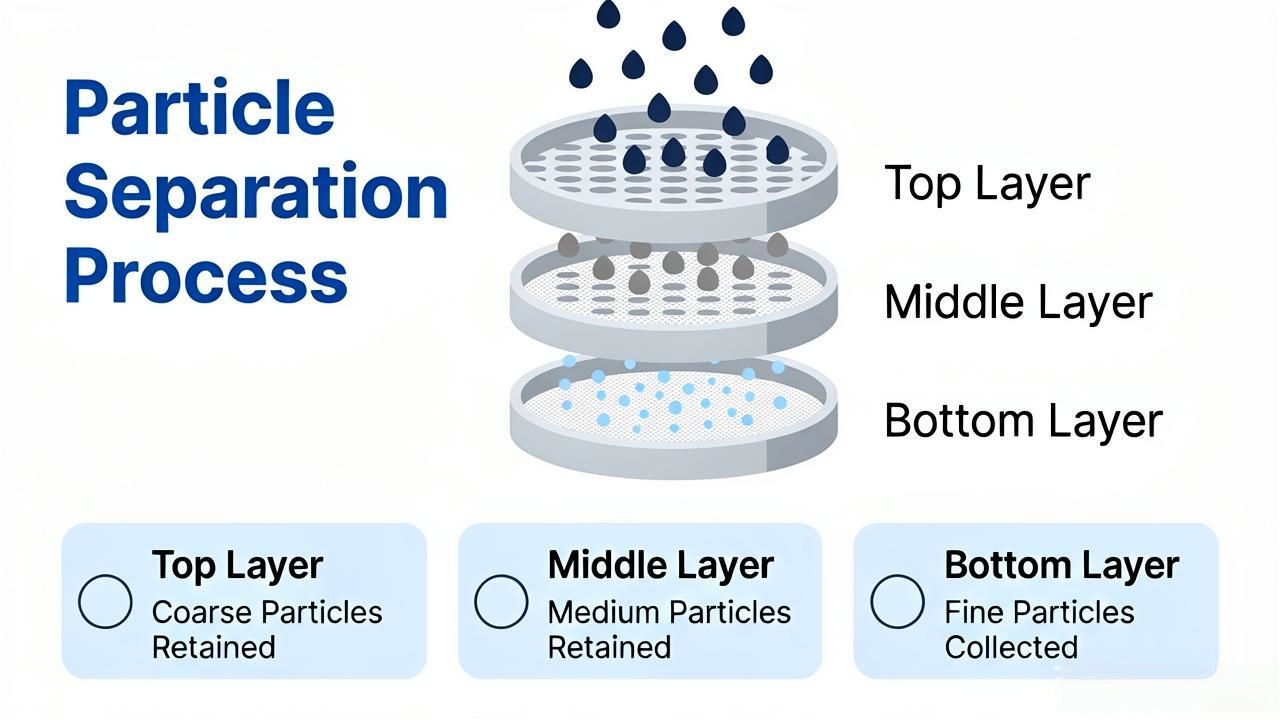

A multi-deck laboratory vibratory sieve shaker is a precision instrument for particle size analysis and material grading in laboratory settings. Unlike single-deck units, it uses a stacked configuration of test sieves with progressively smaller mesh openings. Material placed on the top sieve is subjected to vibration, causing particles to pass through successive layers until each sieve retains a specific size fraction. This delivers complete particle size distribution data in a single operation, eliminating sequential runs and significantly reducing testing time.
Key specs at a glance: Stackable 1–8 test sieves · 20 μm–3 mm particle size range · Operating noise < 50 dB · Sieve changeover ≤ 1 minute
Need a quick quote or technical advice? Contact us for a response within 24 hours.
Key Features
Quick-change sieve clamping – Sieve changeover in ≤ 1 minute, minimizing downtime between tests.
Optional ultrasonic deblinding – Effective for particles down to 20 μm, prevents mesh clogging for ultra-fine powders.
Multi-layer sieving capacity – Up to 8 sieves including bottom pan, separates 2–7 particle fractions in one run.
Automatic timer with shut-off – Programmable duration with auto-stop, ensuring repeatable results.
Compact low-noise operation – Benchtop design, operating at < 50 dB, suitable for shared labs.
Dry and wet sieving support – Compatible with both processes using stainless steel or nylon mesh.
Lightweight and portable – No fixed installation required, easily movable between workstations.
Durable construction – Built for continuous lab use with minimal maintenance.
Easy to operate – Intuitive control panel with clear display, minimal training required.
Versatile application – Suitable for powders, granules, liquids, and slurries across multiple industries.
Recent project
A multi-deck laboratory vibratory sieve shaker was recently supplied to a pharmaceutical R&D center for API powder grading. The S-200 model with ultrasonic deblinding enabled simultaneous 5-fraction particle size analysis down to 20 μm in a single run, reducing testing time by over 60% compared to their previous sequential method.
Technical Specifications
| Parameter | S-200 | S-300 | S-400 | S-600 |
|---|---|---|---|---|
| Sieve diameter | 200 mm | 300 mm | 400 mm | 600 mm |
| Measuring range | 20 μm – 3 mm | 20 μm – 3 mm | 50 μm – 3 mm | 50 μm – 5 mm |
| Layers | Up to 8 | Up to 3 | — | — |
| Mesh range | 5–1000 mesh | 5–1000 mesh | 5–500 mesh | 5–500 mesh |
| Vibration frequency | 1420 rpm | 1420 rpm | 1440 rpm | 1440 rpm |
| Amplitude | 0–3 mm adjustable | 0–3 mm adjustable | 0–3 mm adjustable | 0–3 mm adjustable |
| Motor power | 0.125 kW | 0.125 kW | 0.25 kW | 0.37 kW |
| Noise | < 50 dB | < 50 dB | < 55 dB | < 55 dB |
| Power supply | 220V 50HZ | 220V 50HZ | 380V 50HZ | 380V 50HZ |
| Net weight | 30 kg | 38 kg | 150 kg | 200 kg |
All models are CE certified, manufactured under ISO 9001:2015 compliant quality management systems, and include factory calibration reports with a standard 12-month warranty.
Model Selection Guide
Choose S-200 if you need: Ultra-fine powder analysis down to 20 μm, with optional ultrasonic deblinding for materials prone to clogging.
Choose S-300 if you need: General laboratory use with balanced capacity and benchtop compatibility.
Choose S-400 or S-600 if you need: Coarse aggregate testing or high-volume screening with larger sieve diameters for heavier materials.
Applications
The multi-deck laboratory vibratory sieve shaker is widely used in pharmaceutical, chemical, food, mining, construction, and research laboratories for powder grading, quality control, and particle characterization.
Certifications
✅ CE Certified | ✅ ISO 9001:2015 Compliant | ✅ 12-Month Warranty
RELATED INDUSTRIES
Frequently Asked Questions
Q: What is the minimum particle size for analysis?
A: 20 μm (0.020 mm) for S-200 and S-300 models.
Q: Can vibration intensity be adjusted for different materials?
A: Yes. Amplitude is adjustable from 0 to 3 mm across all models.
Q: Is wet sieving supported?
A: Yes, with appropriate accessories.
Q: Do you provide calibration and certification services?
A: Yes. Factory calibration reports are included. Third-party certification is available upon request.
Conclusion
The multi-deck laboratory vibratory sieve shaker delivers efficient multi-fraction particle separation in one operation. Four models (S-200, S-300, S-400, S-600) cover sieve diameters from 200 mm to 600 mm, with adjustable amplitude (0–3 mm), mesh ranges of 5–1000 mesh, vibration frequencies of 1420–1440 rpm, and quick-change clamping (≤ 1 minute). Optional ultrasonic deblinding is available for ultra-fine powder applications down to 20 μm.
Backed by CE certification, ISO 9001:2015 compliance, and a 12-month warranty, Dahan's multi-deck laboratory vibratory sieve shaker provides reliable, long-term performance in demanding laboratory environments.
